Switch-Pros
Switch-Pros® RCR-FORCE® 12 Switch Panel Power System
Switch-Pros® RCR-FORCE® 12 Switch Panel Power System
Regular price
$1,078.00 USD
Regular price
Sale price
$1,078.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 12 user-programmable switches
- RCR-TOUCH™ switch cover
- Waterproof, solid state power module
- 150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A
(High In-Rush circuits) - 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
- 4 rated @ 35A and 1 rated @ 30A
- Built-in Bluetooth module
- Program and operate accessories with phone or tablet
- System can be used to start vehicle

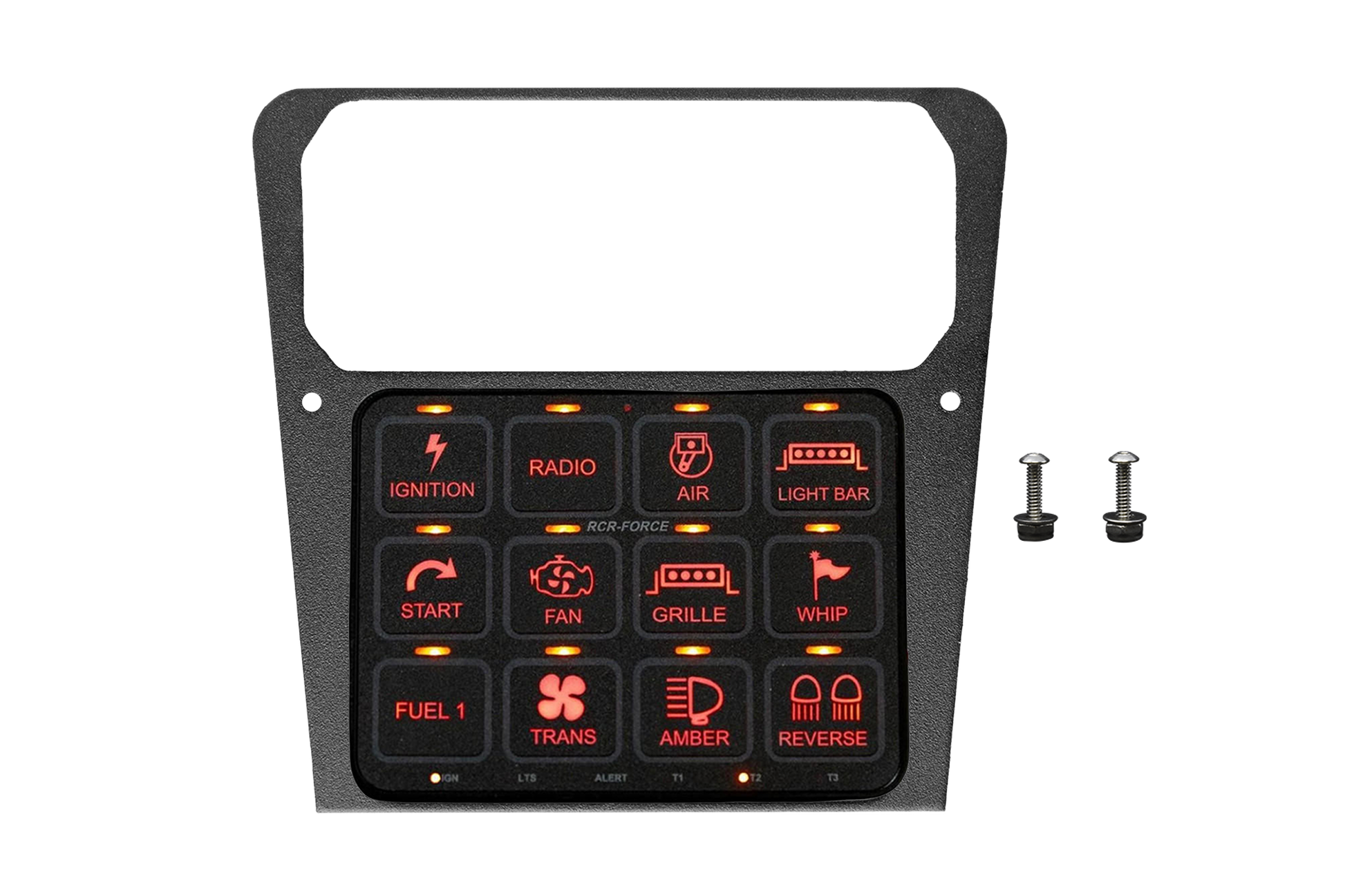

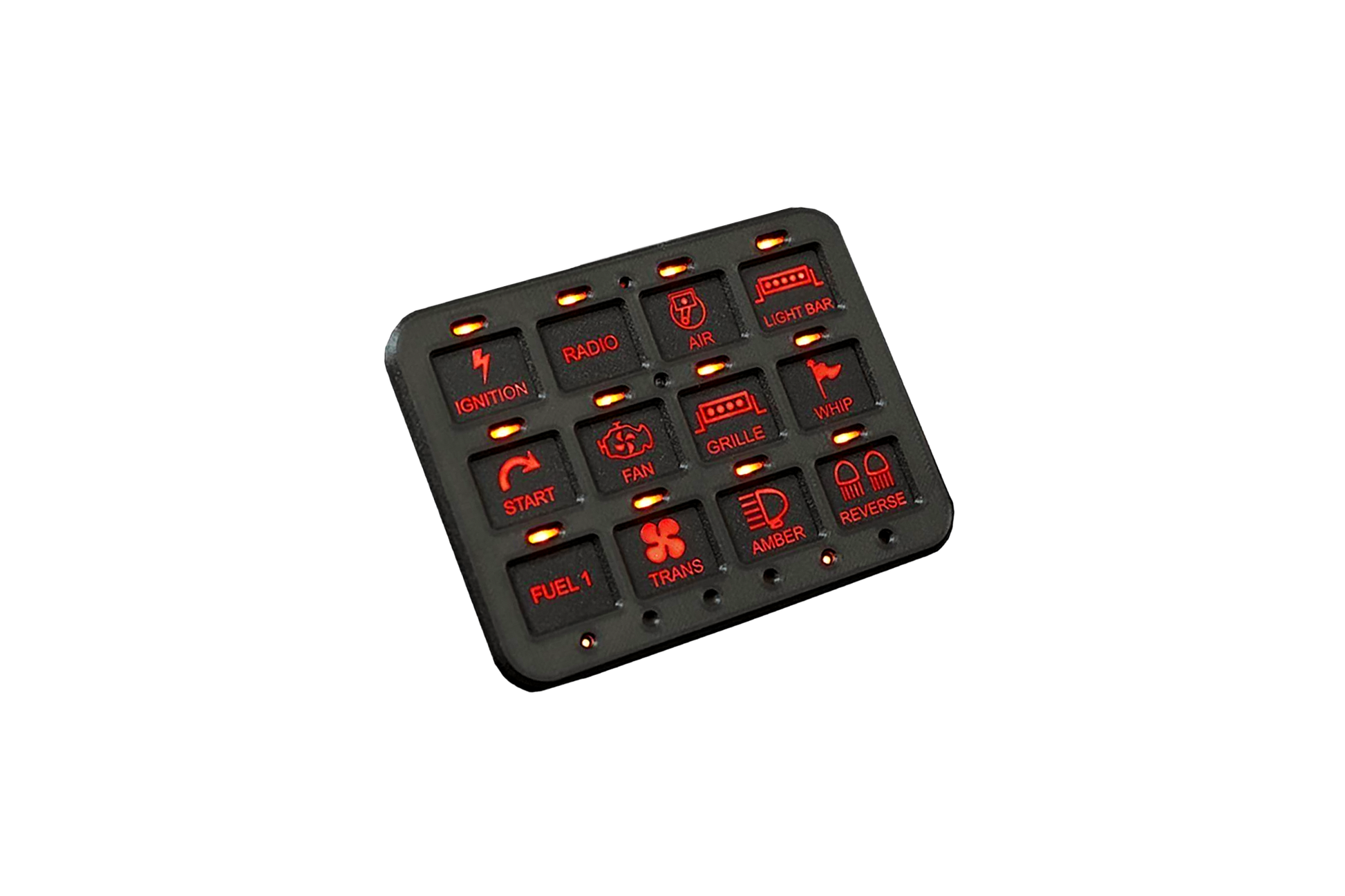

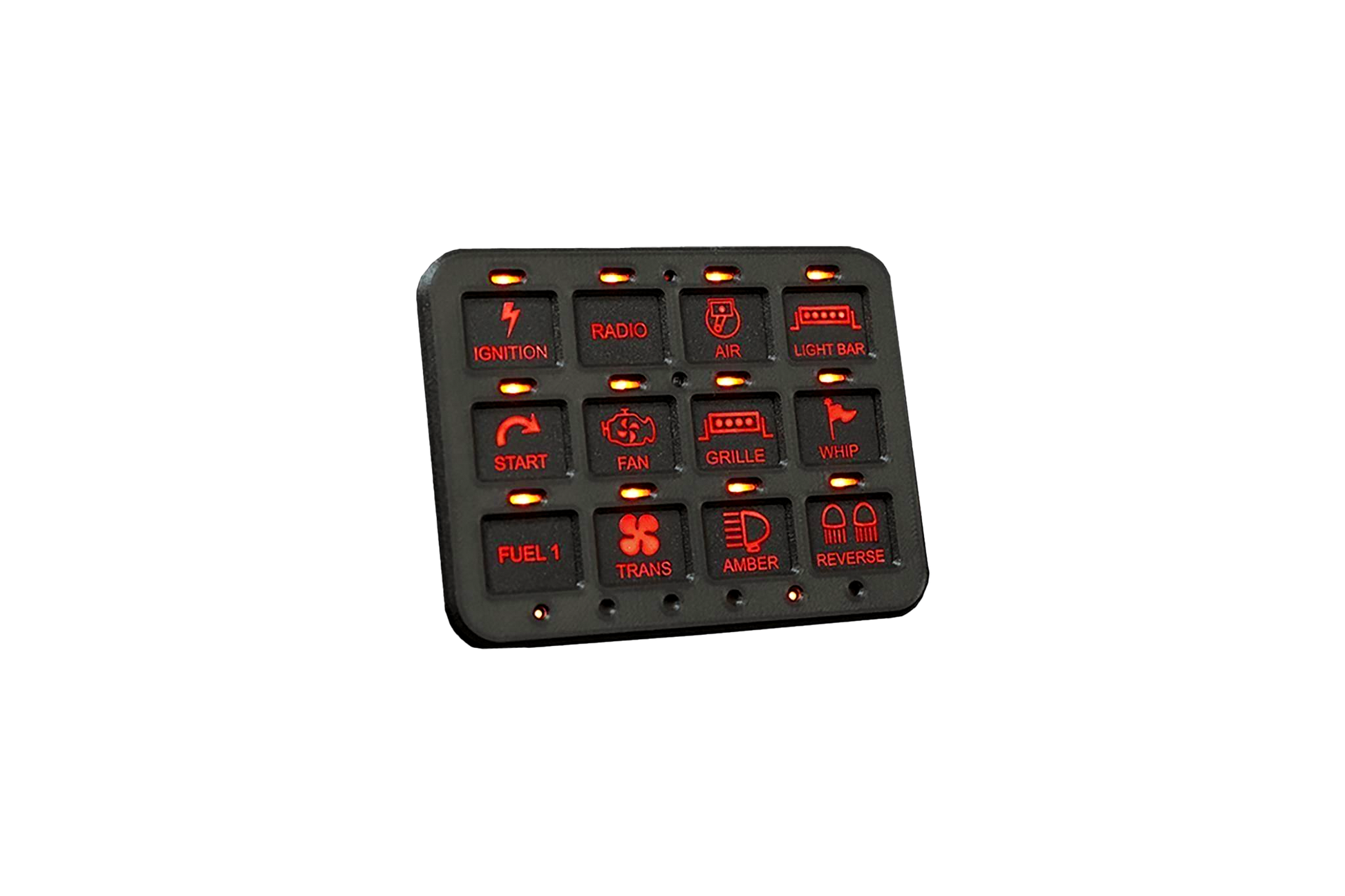

Switch Panel Specs:
- RCR-Touch™ cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
- Switch Panel enclosure measures
4” L x 3” W x .375” H - Splash proof with Polycarbonate overlay faceplate

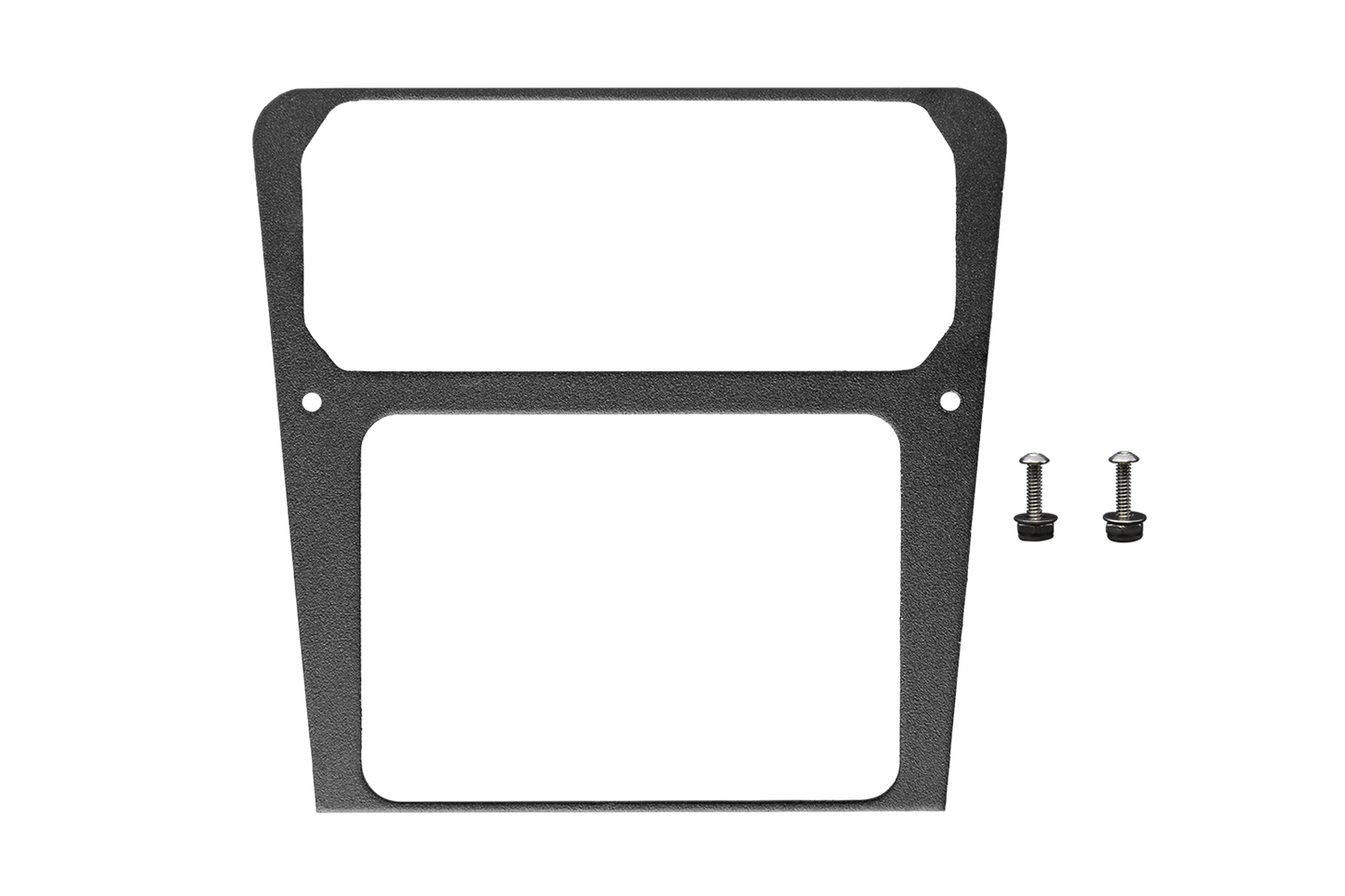

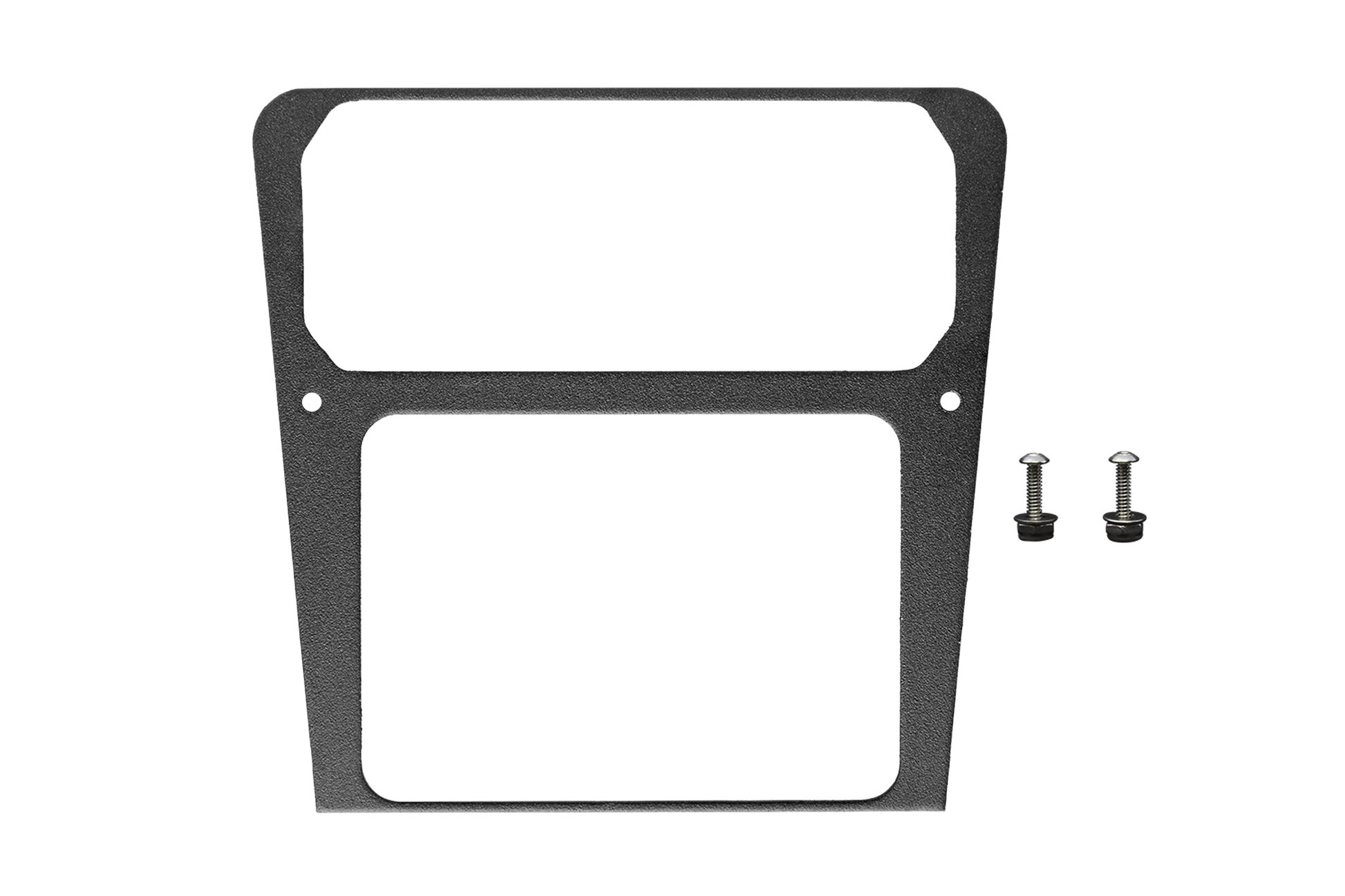

- Pre-machined for factory- look installation
- RGB backlighting
- Orange LED switch indicators
- 6 Programmable LED Status indicators
Power Module Specs:
- 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
- 150A maximum rating
- 7”L x 3.5”W x .5”H (excluding connectors)
- Waterproof and Solid State
- Under hood rated 125° to -40°C
- LED Ignition Input Status Indicator
Kit Also Includes:
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 150A inline Circuit protection
- 100 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- Color Coded Output wires
- Wire harness with waterproof, sealed automotive grade connectors
Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
